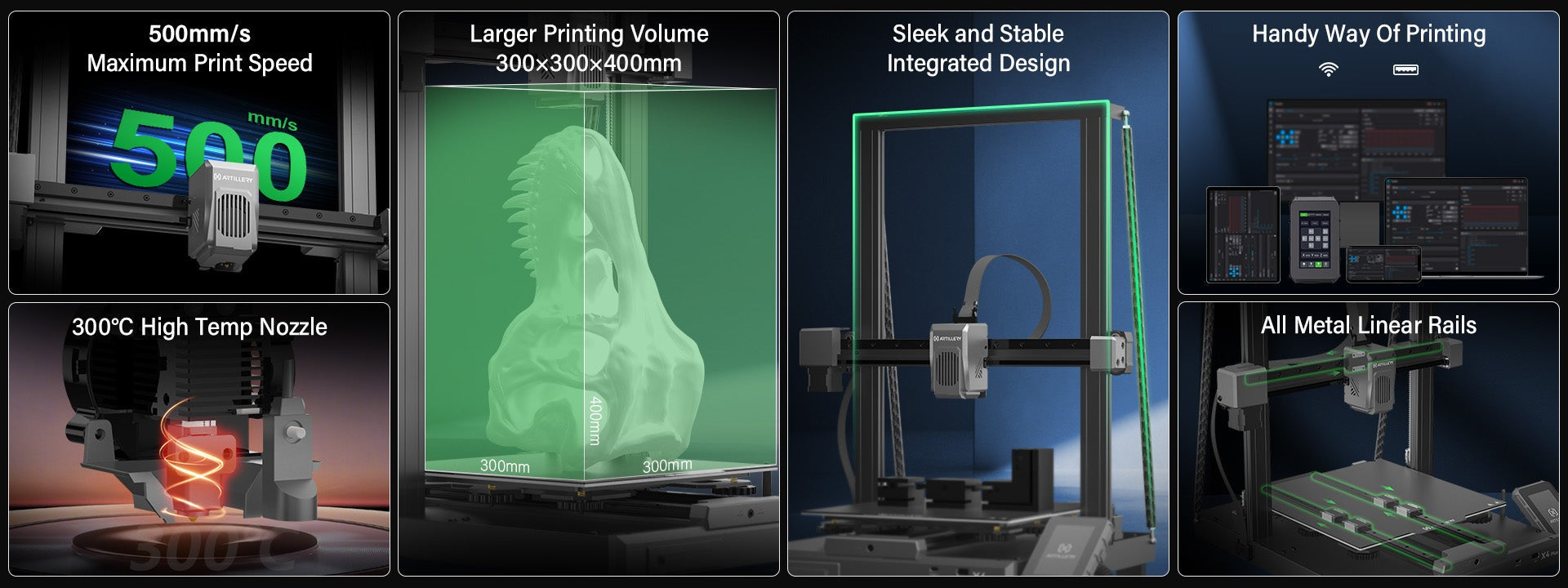

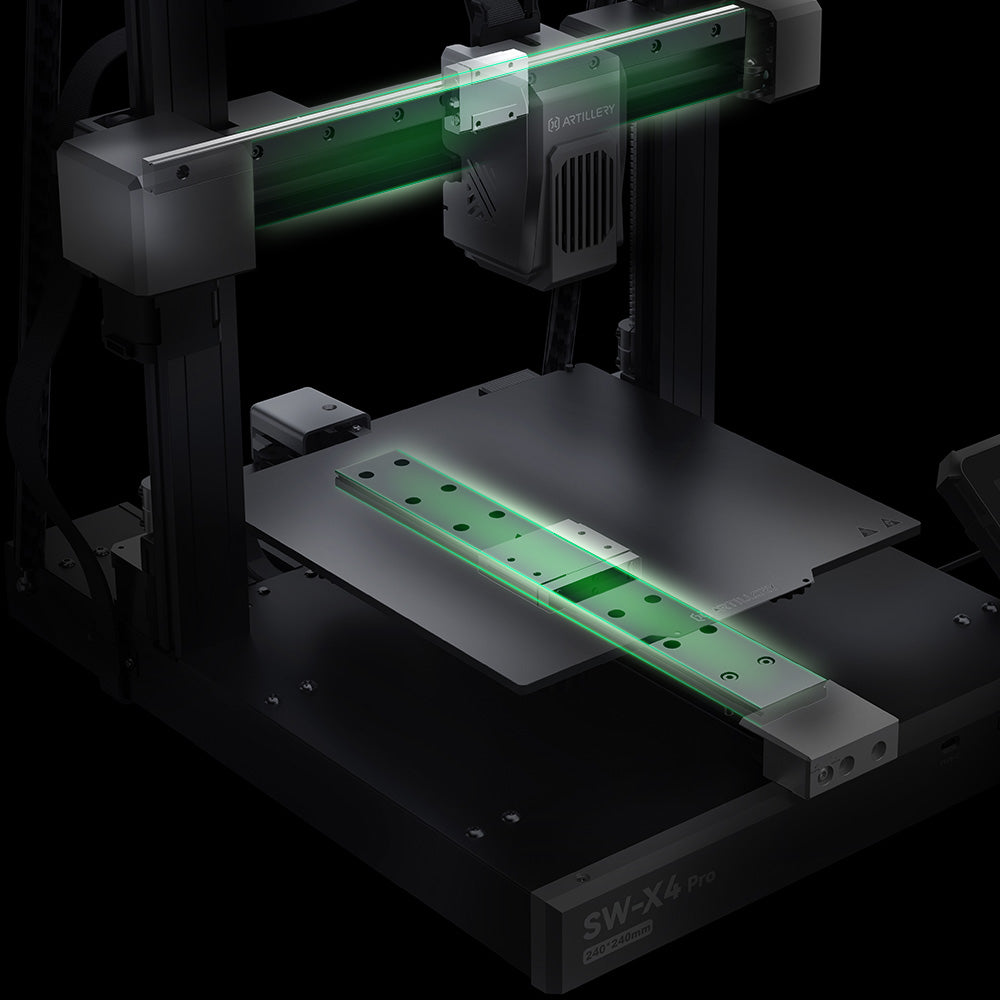

All Metal Linear Rails
UPGRADED STRUCTURE FOR BETTER STABILITY & DURABILITY
Having carriage slides containing ball bearings on the X and Y axis, this superior linear rail structure offers the Artillery SW-X4 Plus greater precision, better mounting, and smoother motion, ensuring an amazing quality of your final build under high-speed 3D printing.

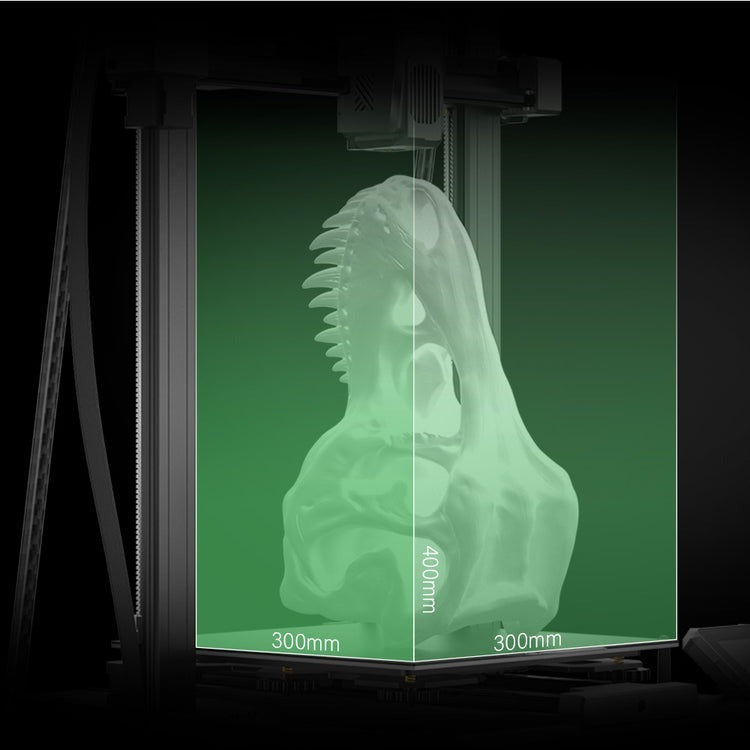

Larger Build Volume
UNLOCK GREATER CREATION
300*300*400mm large print size. Adequate space for larger models printing or batch printing in one go with efficiency.

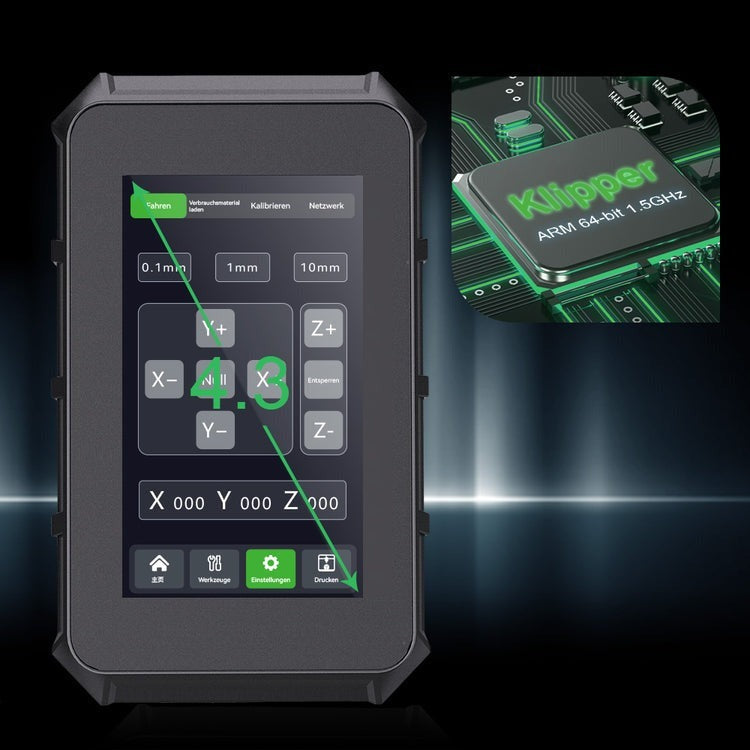

4.3 inch Touch Screen
KLIPPER FIRMWARE PRE-INSTALLED
Embedded with a quiet Klipper motherboard and ARM 64-bit 1.5 GHZ main frequency quad-core high performance processor, the Sidewinder X4 PLUS presents you with a fast printing experience of up to 500mm/s(Default 300mm/s) and up to 10000mm/s² acceleration.

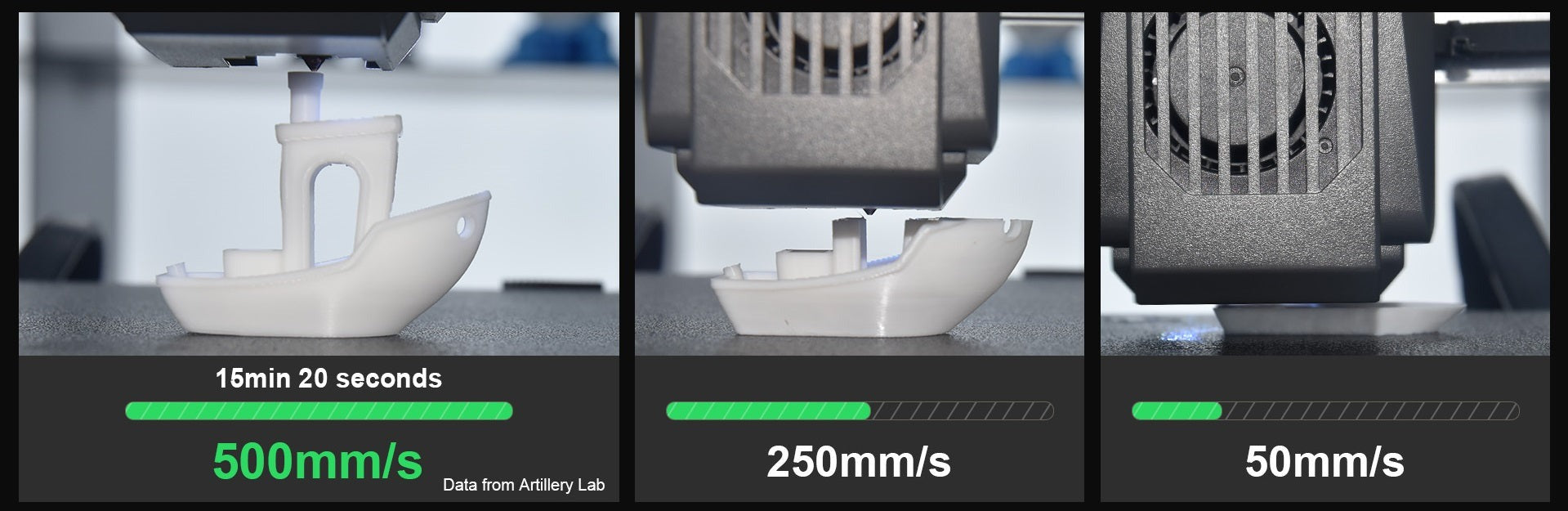

10X Faster No Loss in Quality
Wide range of supported materials

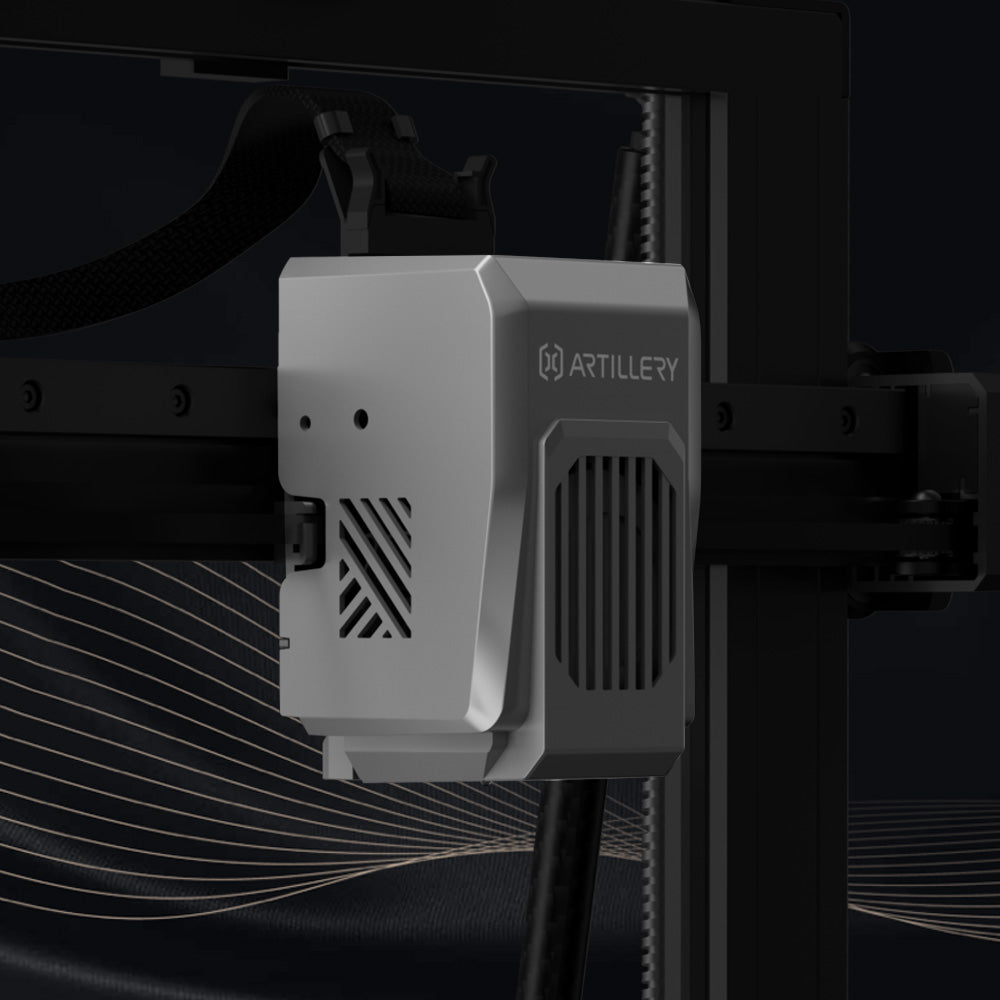

All Metal Dual Gear Direct Drive Extruder
Artillery Self Developed all-metal direct drive extruder with dual gear set, provides the Sidewinder X4 PLUS with a higher drive ratio and a lighter motor, making extrusion more accurate and printing flexible materials easier.

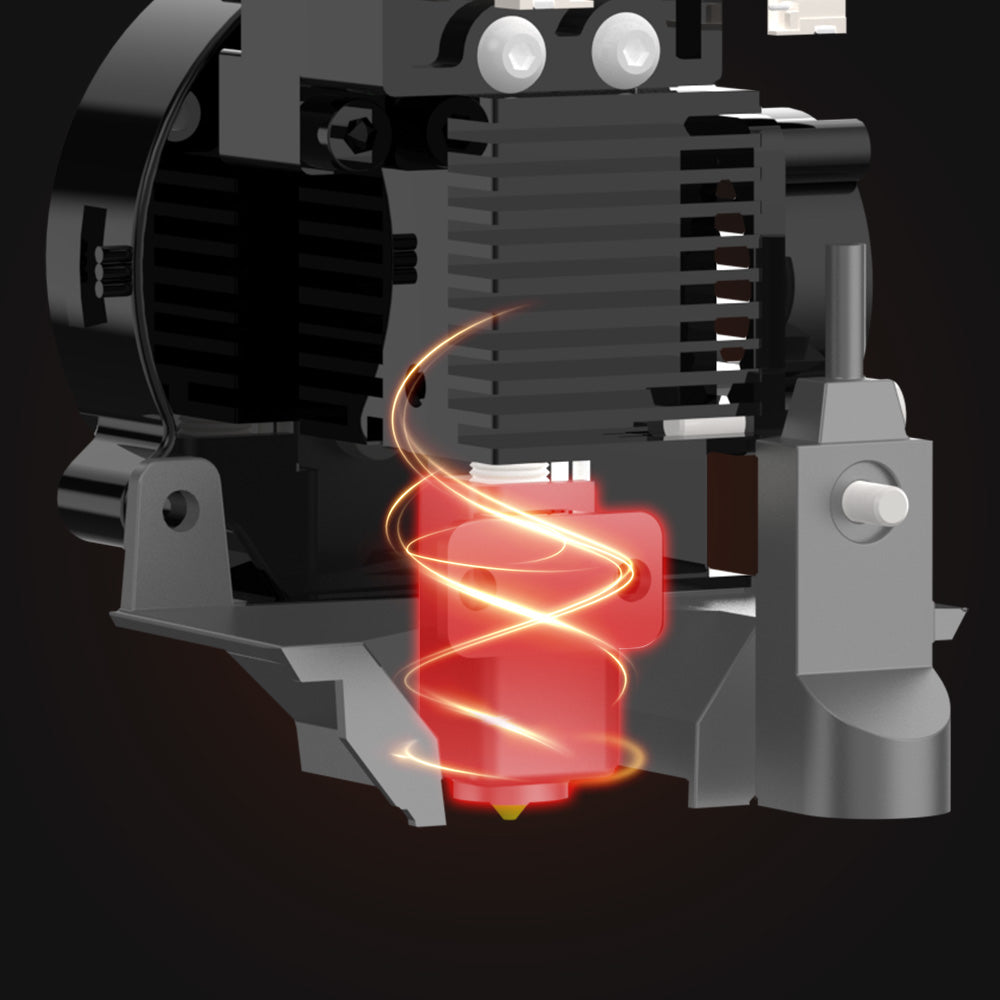

300°C All Metal Hotend
The upgraded all metal hotend with large melting zone ensures the capability of high-temp 3D printing. Unlocking more 3D printing application by meeting your need for printing Strong Materials like Nylon, ABS, Carbon Fiber, ASA, PC, etc.
Efficient 3D printing experience at your fingertips

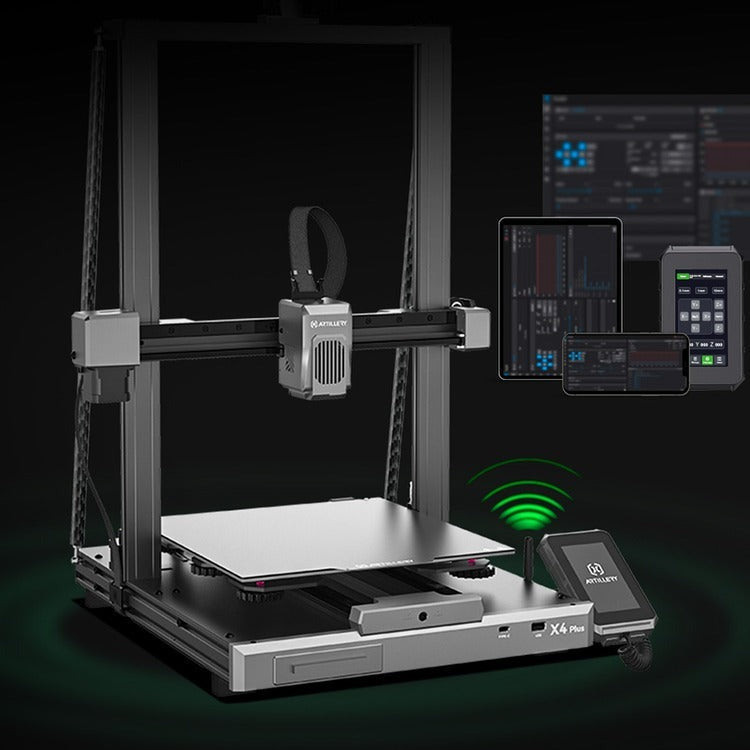

Always Handy Way of Printing
The SW-X4 PLUS can print via USB drive, or data-secure LAN. The embedded WIFI module allows for faster pairing and a more stable connection, making it a simple and reliable way of remote printing and monitoring your print farm.
Easy to Get Started

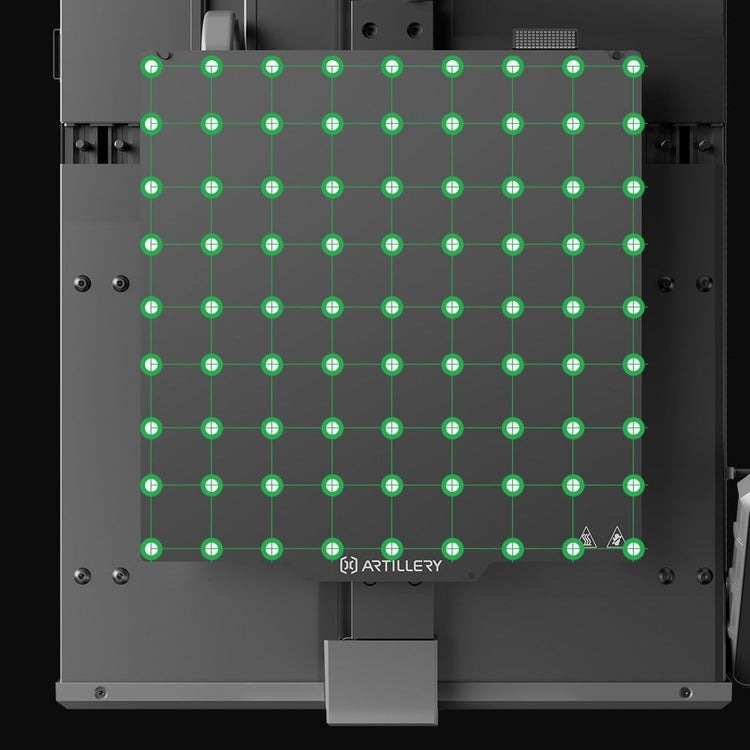

The high precision inductive sensor collects deviation data at 121 points of the bed automatically and compensates the uneveness of the hotbed. Fast and quite detection helps you get a fantastic first layer easily.

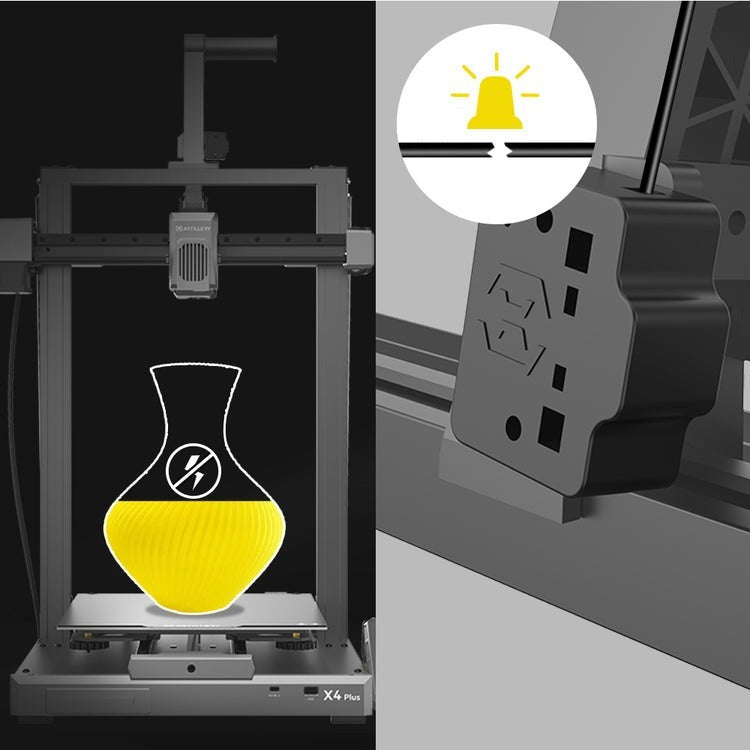

Uninterrupted Precision
The resume printing function enables the SW-X4 PLUS to restart printing easily and perfectly from where it left off even after pause printing or a power outage.

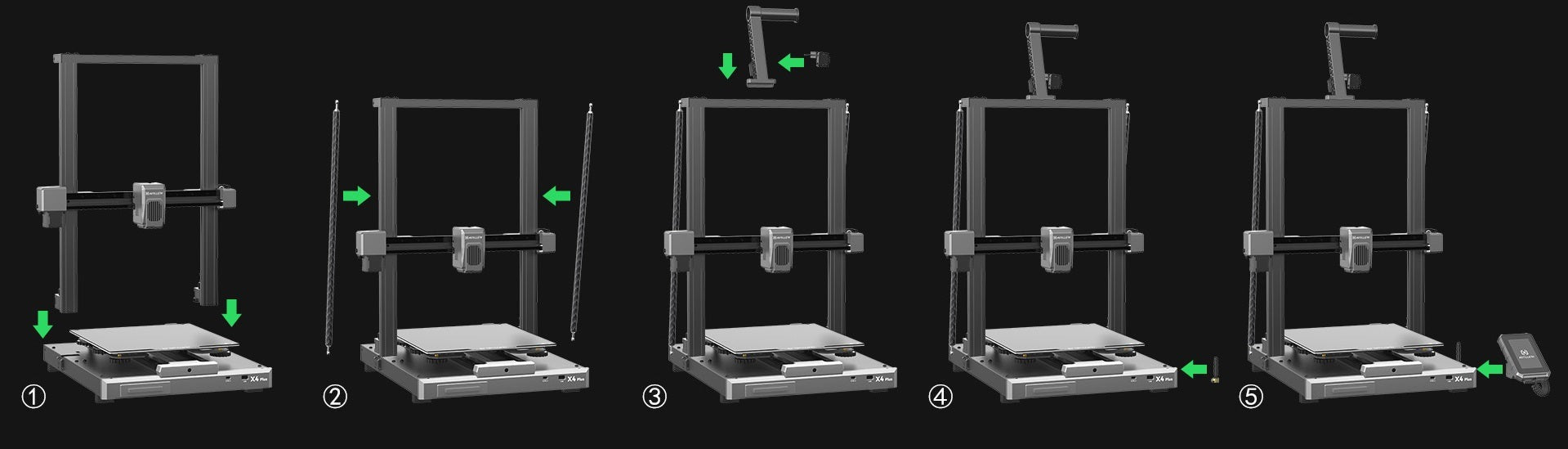

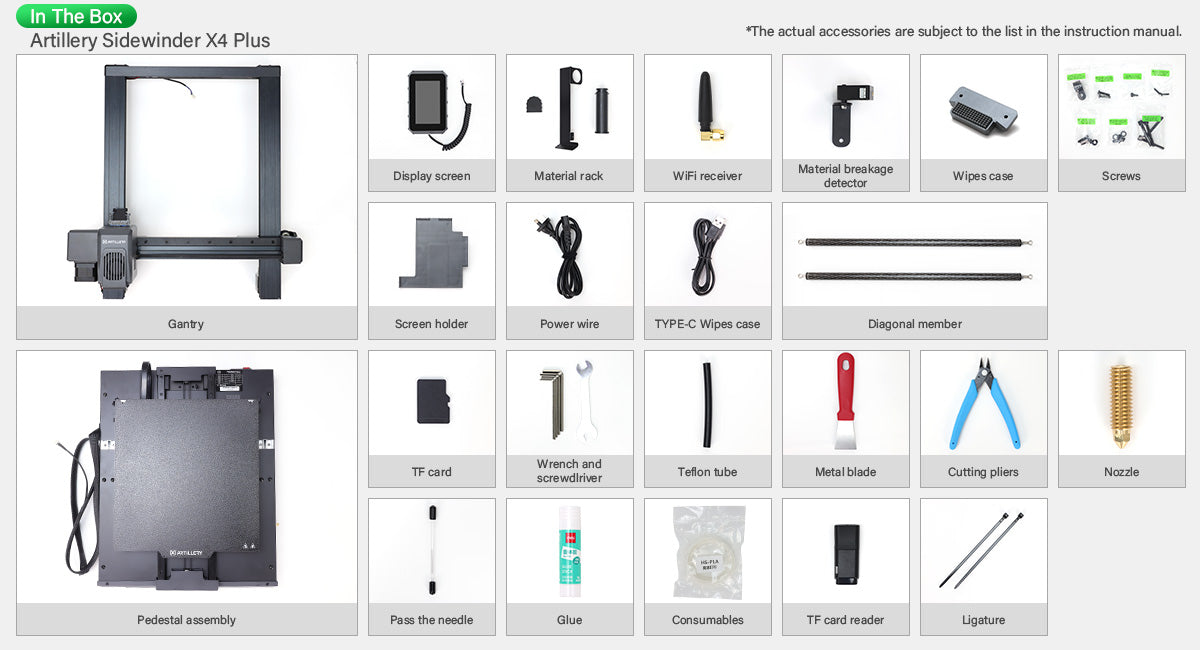

Print Right Out of The Box
The SW-X4 PLUS omes with 98% pre-assembled, easy five steps to set up.
Specification
Printing Technology
FDM
Build Volume
300*300*400 mm (L*W*H)
Product Dimensions
510*490*680mm
Net Weight
15.5 kg
Typical Printing Speed
300mm/s
Max Printing Speed
500mm/s
Max Acceleration
10000mm/s²
Printing Accuracy
±0.1mm
Printer Frame
Robust All Metal Design
Filament Diameter
1.75mm
Nozzle Temp
≤300°C
Hotbed Temp
≤100°C
Build Surface
Dual Sided Textured Magnetic PEI Plate
UI Language
Support English, German, Chinese
File Transfer
USB Drive, Wifi
Extruder
All Metal Dual Gear Direct Drive
Levelling Mode
121 Point Auto Levelling
Display Screen
4.3 inch Touchscreen
Print File Format
G-Code
Resume Printing
Yes
Rated Power
AC100/240V
Rated Voltage
450W
Slicing Software
Artillery Slicer, Cura
Support Filament
PLA/TPU/PETG/ABS/PET/Carbon
Input Shaping
Yes (Preset in Factory)
Pressure Advanced
Yes (Preset in Factory)
Dual Support Rods
Yes
Auto Clean Nozzle
Yes
